hbnb is a full-stack clone of the web application AirBnB. This clone was built in four iterative phases. This version includes completion of Phase 1 from AirBnB_clone_v1: Console and web static plus Phase 2, which has three parts: 1) adding a MySQL database storage system and mapping models to a database table using object relational mapping, 2) deploying web static by creating and configuring a web server using Fabric, and 3) converting static HTML page into a dynamic HTML page using Flask and Jinja2.

Links to other versions:

• AirBnB_clone_v1: Console and web static
• AirBnB_clone_v3: RESTful API
• AirBnB_clone_v4: Web dynamic (Final version!)

The purpose of Phase 2 is to learn how to:

• create a MySQL database
• use ORM
• map a Python class to a MySQL table
• handle 2 different storage engines in same codebase
• use environmental variables

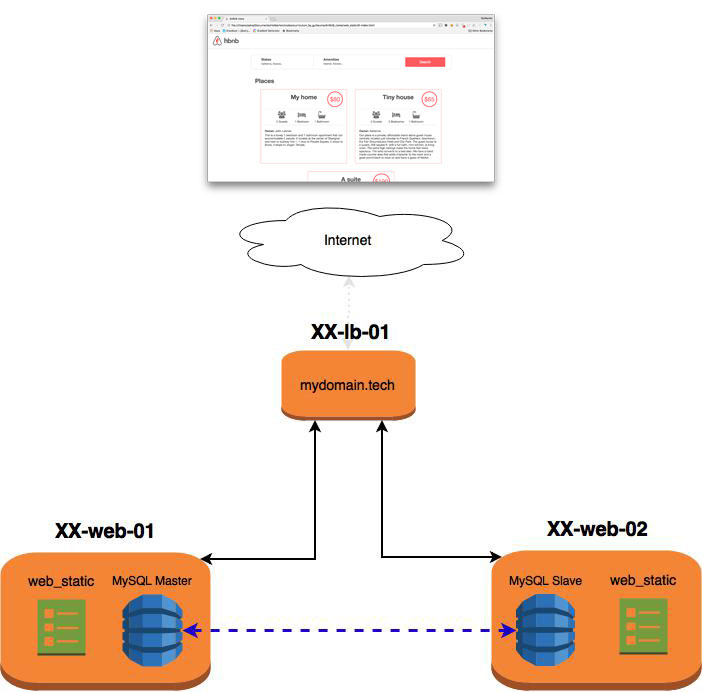

• deploy code on a server
• use Fabric for executing local or remote shell commands, uploading/downloading files, prompting the running user for input, or aborting execution. Fabric is taking care of all network connections (SSH, SCP etc.): it's an easy tool for transferring files and executing commands from local to a remote server.
• manage Nginx configurations
• build a web framework with Flask
• define routes in Flask
• create HTML response in Flask using a template
• create dynamic template with Jinja2
• display data from MySQL database in HTML

• All files compiled with Ubuntu 14.04 LTS
• Documentation
• Organized files in proper folders (i.e. CSS files should be in styles folder)
• Python unit tests for all files
• Use SQLAlchemy 1.2.x and MySQL 5.7
• All files must be pep8 and shellcheck compliant

Note: Below highlights only new file additions for Phase 2. For Phase 1 file descriptions, click here.

• console.py - command interpreter from Phase 1 that includes updated do_create function that allows object creation with given arameters with syntax <key name>=<value>
• setup_mysql_dev.sql - script that prepares a MySQL development server for the project
• setup_mysql_test.sql - script that prepares a MySQL test server for the project
• 0-setup_web_static.sh - Bash script that sets up web servers for web_static deployment
• 1-pack_web_static.py - a Fabric script that generates a .tgz archive from the contents of the web_static folder
  • do_pack - generates a .tgz archive from the contents of the web_static folder using Fabric
• 2-do_deploy_web_static.py - a Fabric script (based on 1-pack_web_static.py) that distributes an archive to web servers
  • do_deploy - distributes an archive to web servers
  • do_pack - generates a .tgz archive from the contents of the web_static folder using Fabric
• 3-deploy_web_static.py - a Fabric script (based on 2-do_deploy_web_static.py) that creates and distributes an archive to my web servers
  • deploy - creates and distributes an archive to web servers
  • do_deploy - distributes an archive to web servers
  • do_pack - generates a .tgz archive from the contents of the web_static folder using Fabric
• models - contains models for relevant AirBnB objects
  • __init__.py - switch to file storage or database storage modes
  • base_model.py - class BaseModel, parent class that will take care of initialization/serialization/deserialization of future instances
    • __init__ - initialize instance attributes
    • __str__ - returns formatted string representation of instance
    • __repr__ - returns string representation of instance
    • save - updates updated_at attribute for new instance
    • to_dict - returns dictionary representation a BaseModel object
  • user.py - class User
  • city.py - class City
  • state.py - class State
  • place.py - class Place
    • reviews - get list of Review instances with place_id (equals current Place.id)
    • amenities getter - returns list of Amenity instances based on the attribute amenity_ids that contains all Amenity.id linked to the Place
    • amenities setter - adds an Amenity.id to attribute amenity_ids if obj is an instance of Amenity
  • review.py - class Review
  • amenity.py - class Amenity
• tests - unit test files
• engine - contains storage engines
  • __init__.py - empty __init__.py file for packages
  • file_storage.py - class FileStorage; serializes instances to JSON file and deserializes from a JSON file
    • all - returns the dictionary __objects
    • new - sets in __objects the obj with key <obj class name>.id
    • save - serializes __objects to the JSON file (path: __file_path)
    • reload - deserializes the JSON file to __objects
    • delete - delete object from __objects if exists
    • close - call reload
  • db_storage.py - class DBStorage;
    • __init__ - initalize instances
    • all - return dictionary of instance attributes
    • new - add new object to current database session
    • save - commit all changes of the current database session
    • delete - delete from the current database session obj if not None
    • reload - create all tables in database and current database session
    • close - close session
• web_flask - contains Flask, templates, and static files
  • __init__.py - import Flask and create a Flask instance
  • 0-hello_route.py - script that starts a Flask web application where route / displays 'Hello HBNB!'
  • 1-hbnb_route.py - script that starts a Flask web application where route / displays 'Hello HBNB~' and route /hbnb displays 'HBNB'
  • 2-c_route.py - script that starts a Flask web application where route / displays 'Hello HBNB!', /hbnb displays 'HBNB', /c/<text> displays 'C' followed by the value of the text variable (replace underscore _ symbols with a space
  • 3-python_route.py - script that starts a Flask web application where route / displays 'Hello HBNB!', /hbnb displays 'HBNB', /c/<text> displays 'C' followed by the value of the text variable (replace underscore _ symbols with a space , /python/(<text>) displays 'Python ', followed by the value of the text variable (replace underscore _ symbols with a space ) where the default value of text is 'is cool'
  • 4-number_route.py - script that starts a Flask web application where route / displays 'Hello HBNB!', /hbnb displays 'HBNB', /c/<text> displays 'C' followed by the value of the text variable (replace underscore _ symbols with a space , /python/(<text>) displays 'Python ', followed by the value of the text variable (replace underscore _ symbols with a space ) where the default value of text is 'is cool', /number/<n> displays 'n is a number' only if n is an integer
  • 5-number_template.py - script that starts a Flask web application where route / displays 'Hello HBNB!', /hbnb displays 'HBNB', /c/<text> displays 'C' followed by the value of the text variable (replace underscore _ symbols with a space , /python/(<text>) displays 'Python ', followed by the value of the text variable (replace underscore _ symbols with a space ) where the default value of text is 'is cool', /number/<n> displays 'n is a number' only if n is an integer, /number_template/<n> displays an HTML page only if n is an integer
  • 6-number_odd_or_even.py - script that starts a Flask web application where route / displays 'Hello HBNB!', /hbnb displays 'HBNB', /c/<text> displays 'C' followed by the value of the text variable (replace underscore _ symbols with a space , /python/(<text>) displays 'Python ', followed by the value of the text variable (replace underscore _ symbols with a space ) where the default value of text is 'is cool', /number/<n> displays 'n is a number' only if n is an integer, /number_template/<n> displays an HTML page only if n is an integer, /number_odd_or_even/<n> displays an HTML page only if n is an integer where H1 tag includes 'Number: n is even|odd' in BODY tag
  • 7-states_list.py - script that starts a Flask web application where route /states_list displays an HTML page with H1 tag: “States”, UL tag: list of all State objects present in DBStorage sorted by name (A->Z), LI tag: description of one State: <state.id>: <B><state.name></B>
  • 8-cities_by_states.py - script that starts a Flask web application where route /cities_by_states displays an HTML page with H1 tag: “States”, UL tag: list of all State objects present in DBStorage sorted by name (A->Z), LI tag: description of one State: <state.id>: <B><state.name></B>, LI tag: description of one City: <city.id>: <B><city.name></B>
  • 9-states.py - script that starts a Flask web application where route /states displays an HTML page with H1 tag: “States”, UL tag: list of all State objects present in DBStorage sorted by name (A->Z), LI tag: description of one State: <state.id>: <B><state.name></B>; route /states/<id>displays an HTML page where if a State object is found with this id: H1 tag: “State: ”, H3 tag: “Cities:”, UL tag: with the list of City objects linked to the State sorted by name (A->Z), LI tag: description of one City: <city.id>: <B><city.name></B>; Otherwise: H1 tag: “Not found!”

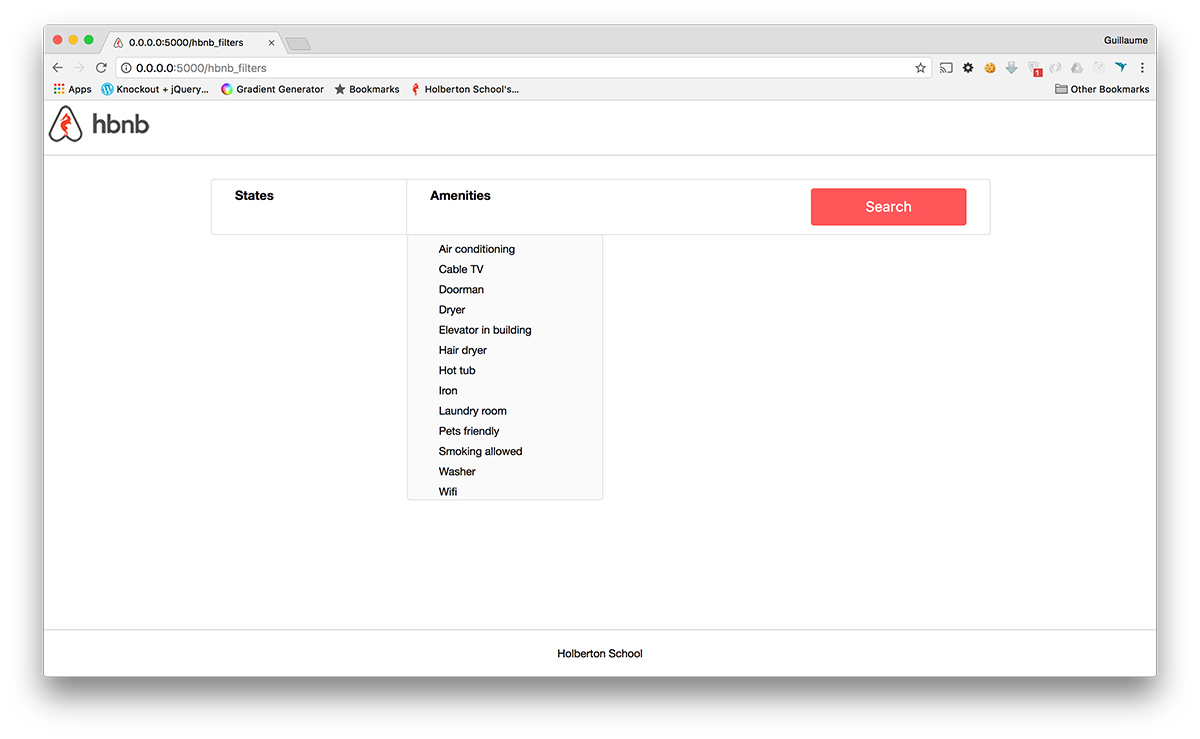

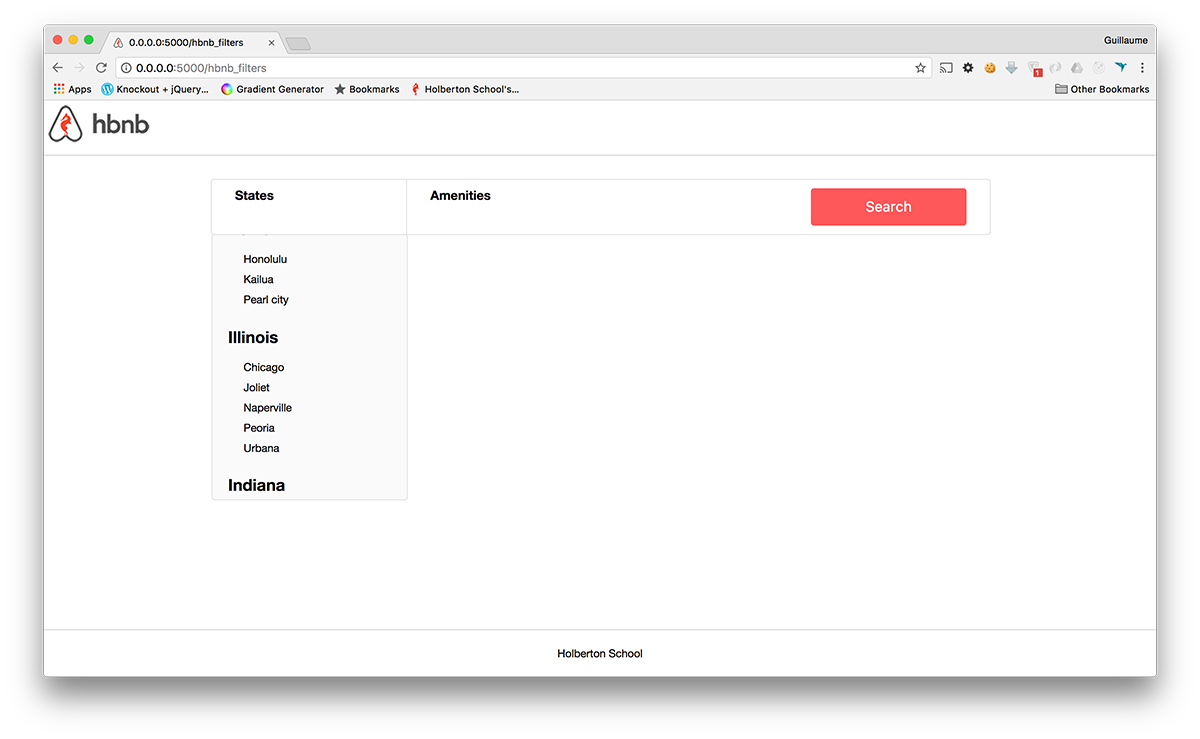

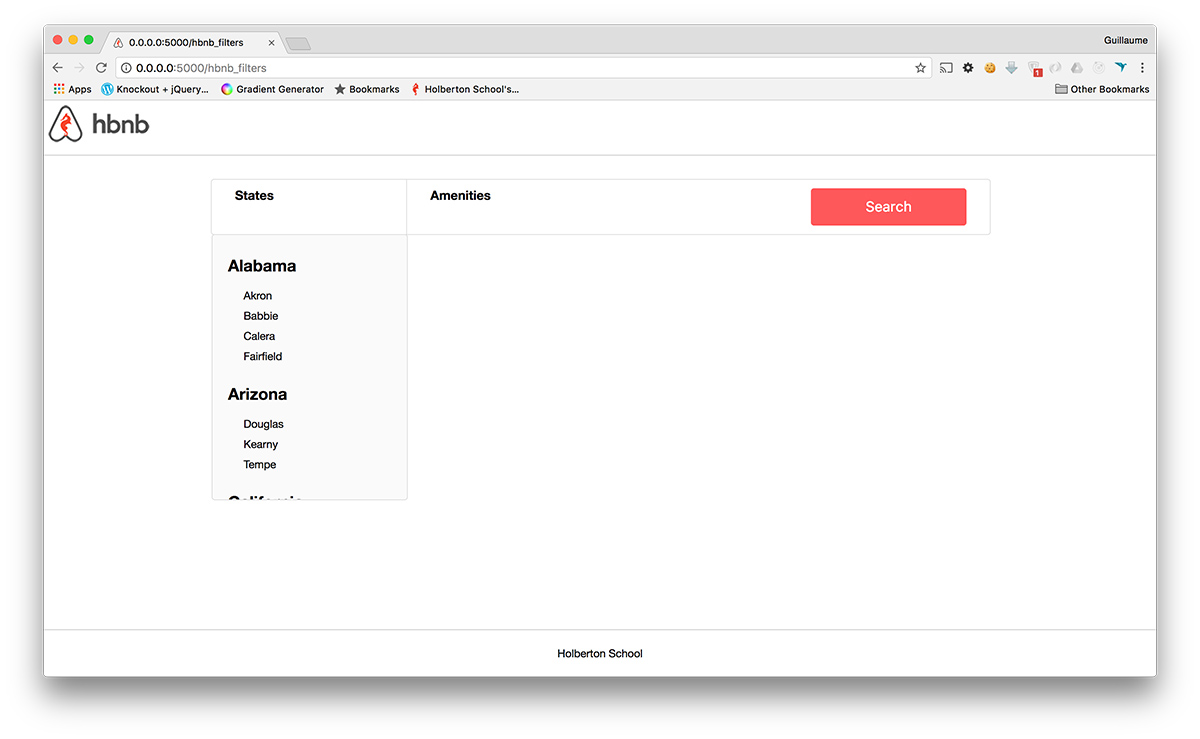

  • 10-hbnb_filters.py - script that starts a Flask web application and defines route /hbnb_filters to display an HTML page like below:

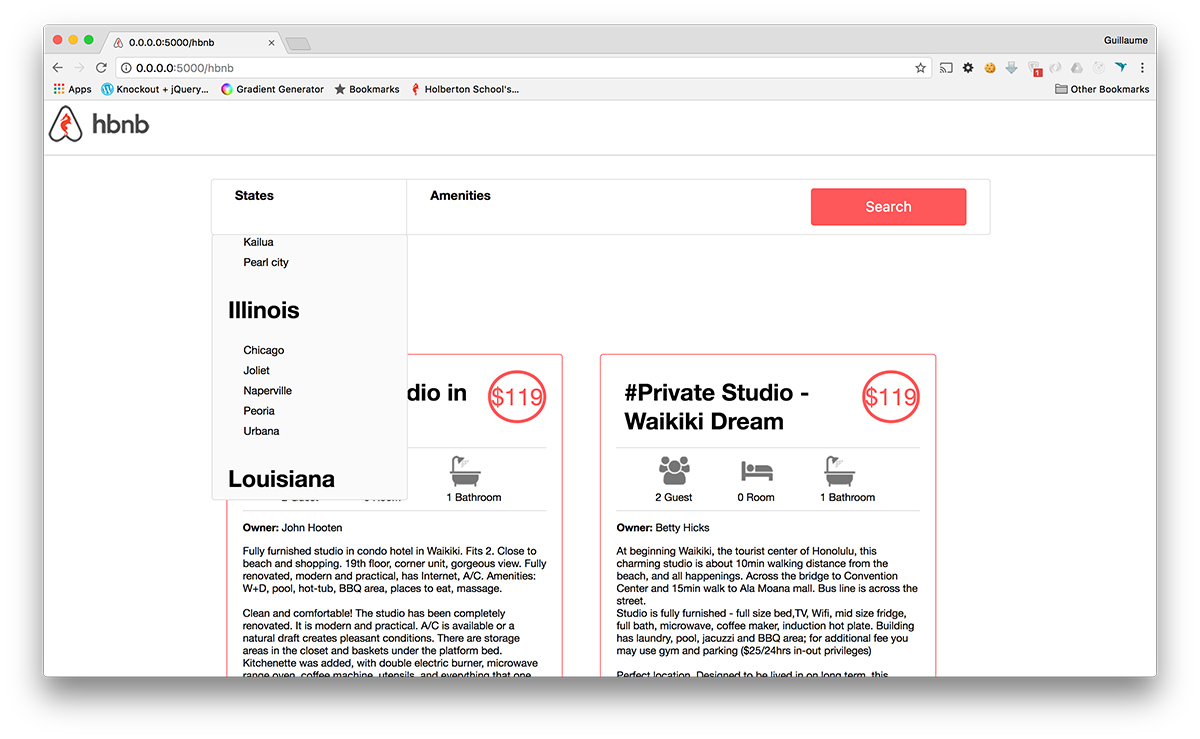

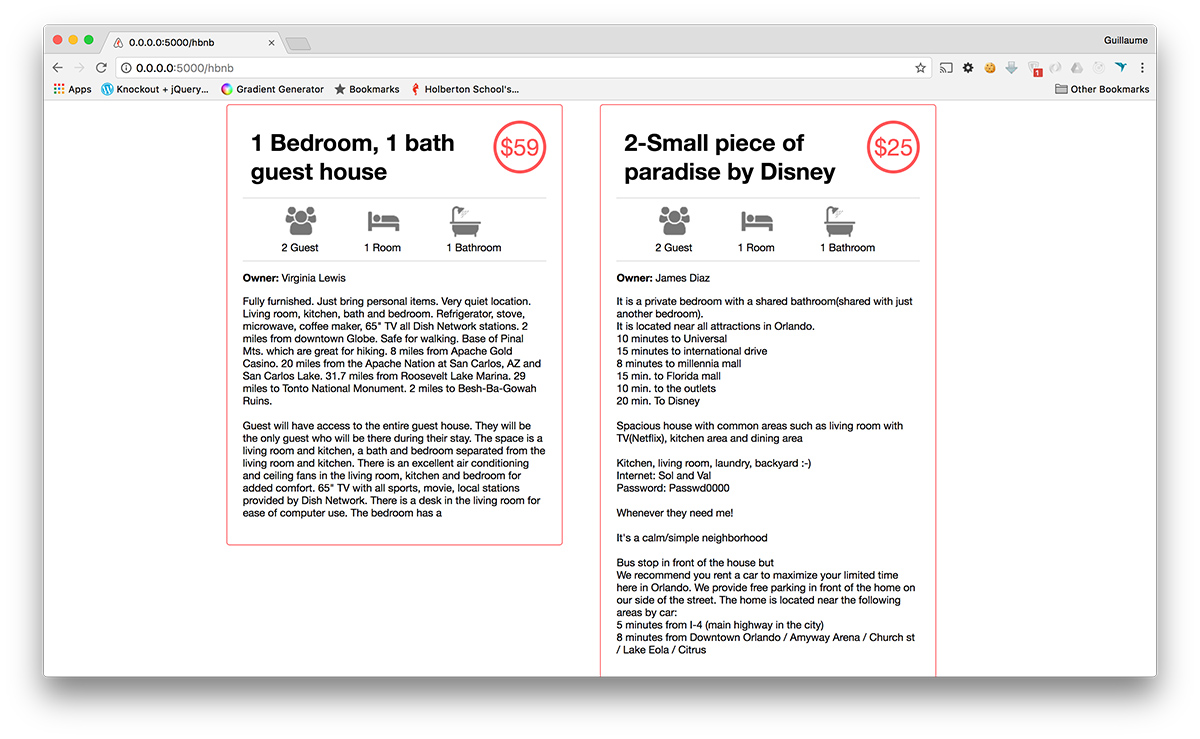

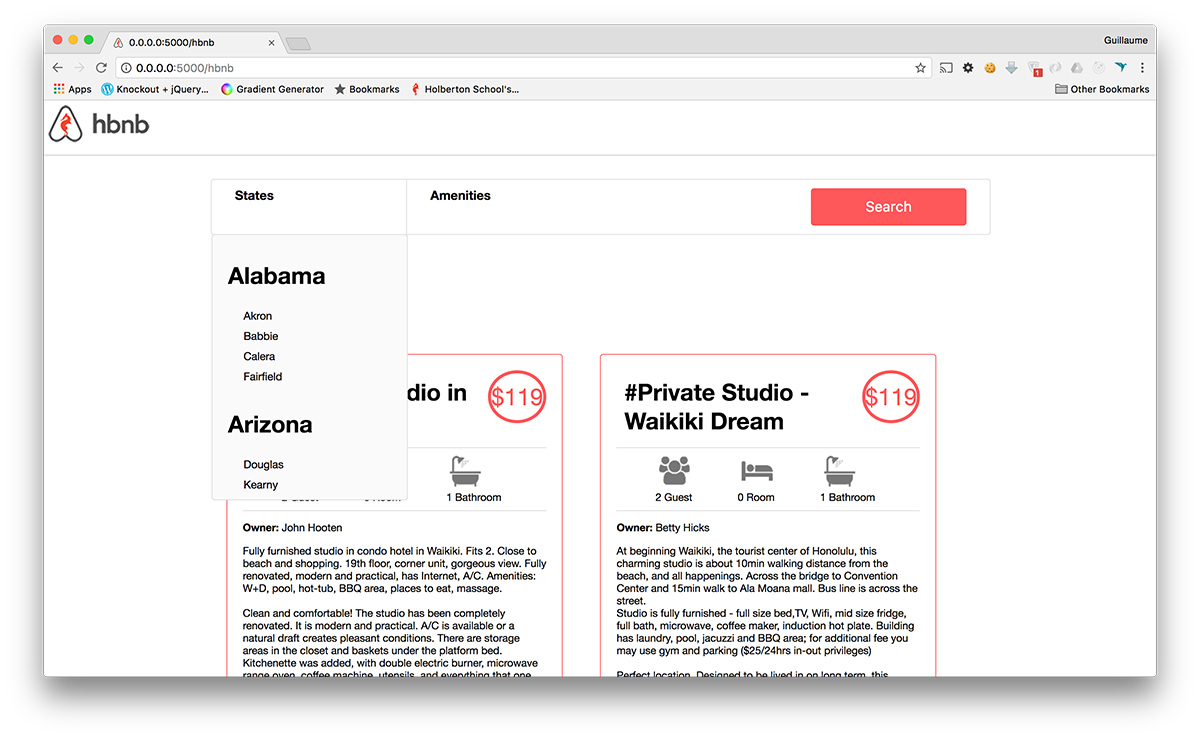

  • 100-hbnb.py - script that starts a Flask web application and route /hbnb displays an HTML page like below:
  • templates - contains HTML files
    • 5-number.html - number template
    • 6-number_odd_or_even.html - even/odd template
    • 7-states_list.html - list of states template
    • 8-cities_by_states.html - list of cities by states template
    • 9-states.html - list of states by id template
    • 10-hbnb_filters.html - filters template
    • 100-hbnb.html - advanced filters template
  • static - contains CSS and image files
    • styles - contains CSS files
      • 3-header.css - header styles
      • 3-footer.css - footer styles
      • 4-common.css - body styles
      • 6-filters.css - filter styles
      • 8-places.css - places styles

HBNB_ENV: running environment. It can be “dev” or “test” for the moment (“production” soon!)
HBNB_MYSQL_USER: the username of your MySQL
HBNB_MYSQL_PWD: the password of your MySQL
HBNB_MYSQL_HOST: the hostname of your MySQL
HBNB_MYSQL_DB: the database name of your MySQL
HBNB_TYPE_STORAGE: the type of storage used. It can be “file” (using FileStorage) or db (using DBStorage)

Run the following in your terminal:

user@ubuntu:~/AirBnB_v2$ curl -o 100-dump.sql "https://s3.amazonaws.com/intranet-projects-files/holbertonschool-higher-level_programming+/290/100-hbnb.sql"
user@ubuntu:~/AirBnB_v2$ cat 100-dump.sql | mysql -uroot -p
Enter password:
user@ubuntu:~/AirBnB_v2$ HBNB_MYSQL_USER=hbnb_dev HBNB_MYSQL_PWD=hbnb_dev_pwd HBNB_MYSQL_HOST=localhost HBNB_MYSQL_DB=hbnb_dev_db HBNB_TYPE_STORAGE=db python3 -m web_flask.100-hbnb
* Running on http://0.0.0.0:5000/ (Press CTRL+C to quit)
....

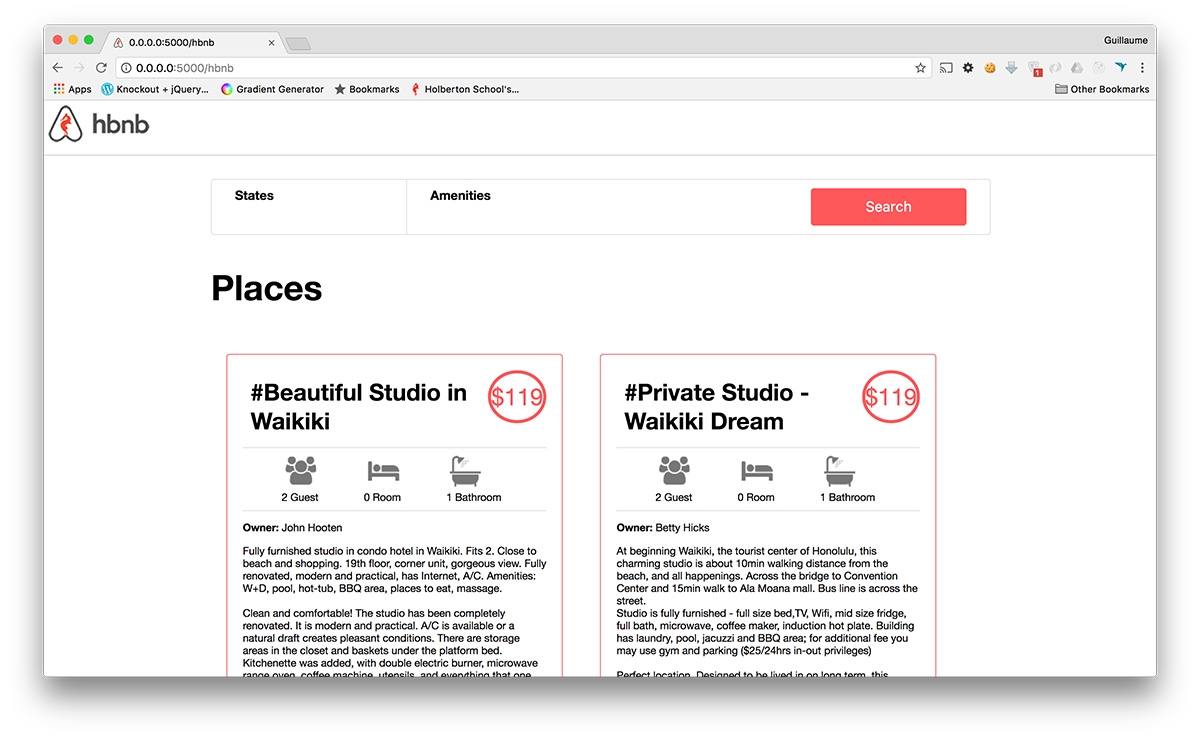

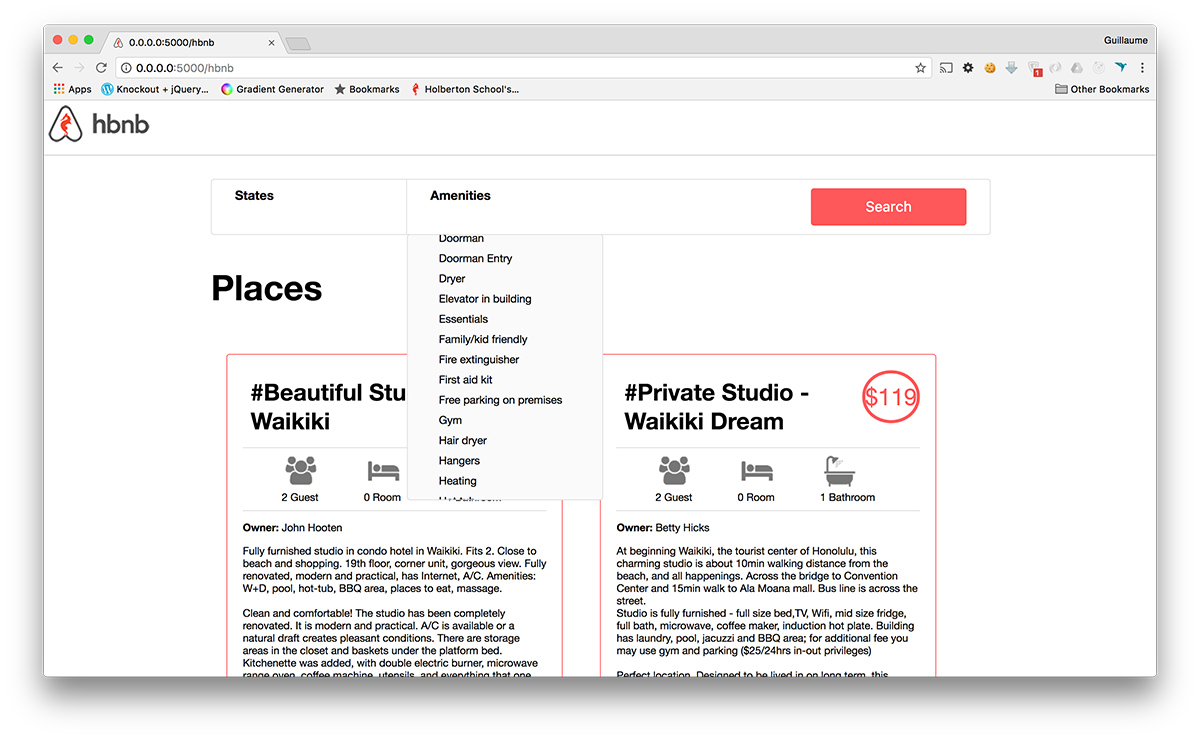

Open up a web browser and type 0.0.0.0:5000/hbnb. Voila! You should see a lovely webpage like below:

At this time, there are no known bugs.

Phase 2:

• Becky Chen | GitHub | Twitter
• Arik Rosenthal | GitHub | Twitter

Phase 1 codebase: (For practice working with new codebases)

• Binita Rai | Github
• Steven Garcia | Github

hbnb is open source and free to download and use
